316 Stainless Pipe

Size Range:

Seamless:Outer Diameter: Φ3-Φ600mm;Wall Thickness: 0.5-100mm; Length:24000mm

Welded:Outer Diameter: Φ6-Φ1219mm;Wall Thickness: 0.3-45mm ;Length: 18000mm (Maximum)

Standards:ASTM A213;ASTM A269;ASTM A312;ASTM A632;ASME SA213;NFA 49-117;BS 10216

Introduce

Description

316 / 316L stainless steel pipe is used for pressure operations to move liquids or gases in water treatment, waste treatment, petrochemical, chemical and pharmaceutical industries. Structural applications include handrails, poles and support pipe for salt water and corrosive environments.

Jinhongtong group Supply’s 316/316L stainless steel pipe meets industry standards and specifications. Our ASTM A312 and ASME SA312 stainless steel pipe is strong, durable, and suited for a wide range of applications.

Specification

Dimensional Tolerances

OD	OD Tolerance	Wall Tolerance
≤ .500”	± .005”	± 10%
.500”–1.500” excl	± .005”	± 10%
1.500”–3.500” excl	± .010”	± 10%
3.500”–5.500” excl	± .015”	± 10%

Standard

ASTM A213;ASTM A269;ASTM A312;ASTM A632;ASME SA213;NFA 49-117;BS 10216

Typical Chemical Composition % (max values, unless noted)
Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N
316	0.08 max	2.0 max	0.75 max	0.045 max	0.03 max	min: 16.0 max: 18.0	min: 2.0 max: 3.0	min: 10.0 max: 14.0	0.10 max
316L	0.03 max	2.0 max	0.75 max	0.045 max	0.03 max	min: 16.0 max: 18.0	min: 2.0 max: 3.0	min: 10.0 max: 14.0	0.10 max

MECHANICAL PROPERTIES:

Typical Room Temperature Mechanical Properties
Grade	Tensile Strength KSI (min.)	Yield Strength 0.2% Offset KSI (min.)	Elongation % in 2ʺ(50.8 mm)	Hardness (Brinell) MAX	Hardness (Rockwell B) MAX
316	75	30	40	217	95
316L	70	25	40	217	95

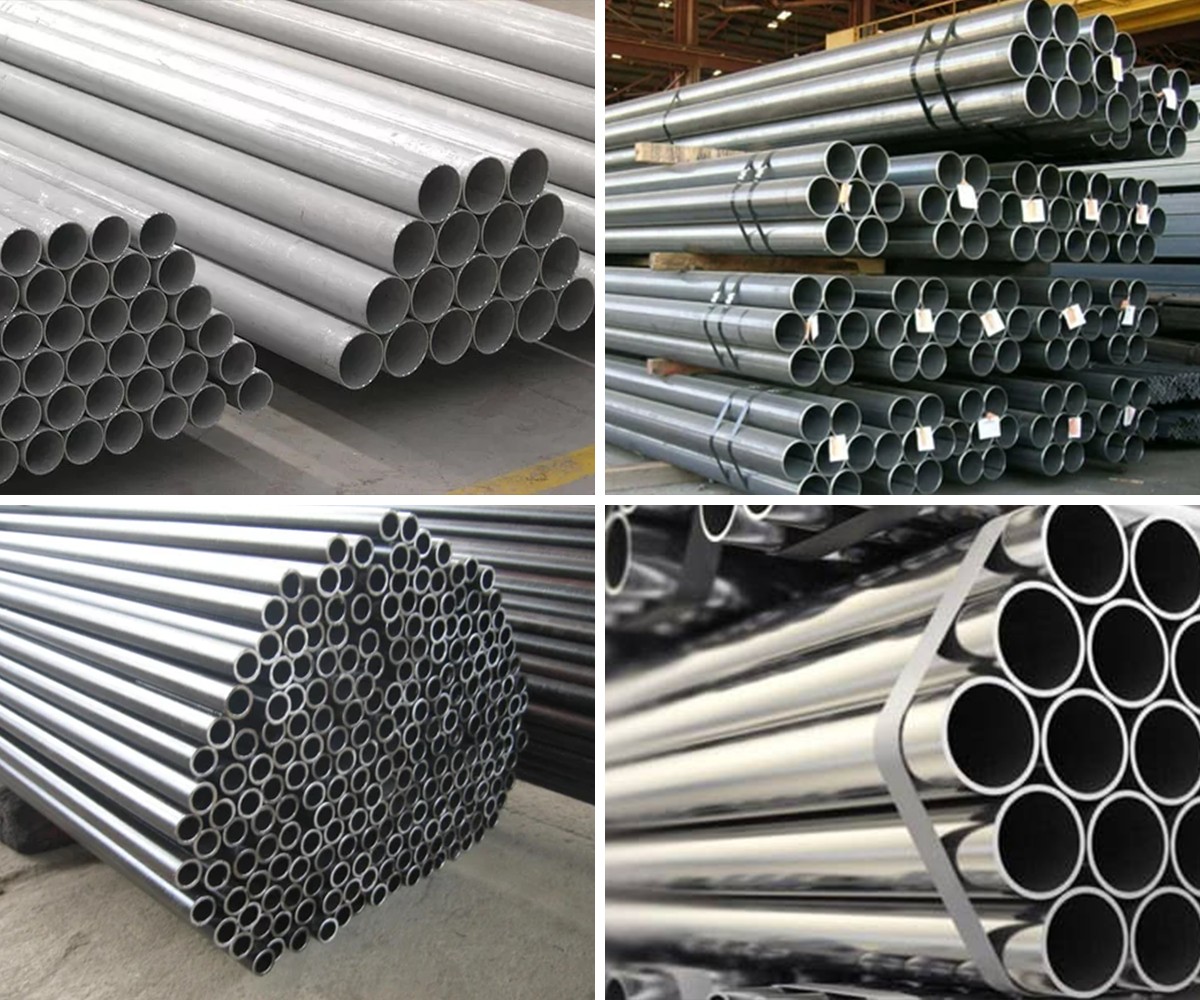

product picture

Product Application
