Galvanized Square Pipe
Galvanized square steel pipe is a welded steel pipe with a hot-dip galvanized or electro-galvanized layer on the surface. Galvanizing can increase the corrosion resistance of steel pipes and prolong the service life. Galvanized pipes are widely used. In addition to being used as pipeline pipes for general low-pressure fluids such as water, gas, and oil, they are also used as oil well pipes and oil pipes in the petroleum industry, especially in offshore oil fields, and oil heaters and condensers in chemical coking equipment. Pipes for coolers, coal distillation washing oil exchangers, and pipes for trestle piles and supporting frames of mine tunnels, etc.
Galvanized Square Pipe
Submit

Introduce

Description


Galvanized Square & Rectangle Steel Tube, is a A500 / A513 Grade that has been hot dipped in a zinc rich galvanizing process. Galvanized tubes are a lower cost alternative to stainless steel to achieve rust free protection for up to 30 years, while maintaining comparable strength with a durable surface coating. Metals Depot stocks many sizes in precut lengths, full mill lengths or we can hot dip virtually any size and quantity required for your welding or construction project.
Galvanized tubes can be cut, machined or welded by common methods used for regular steel, but adequate ventilation should be used to avoid inhalation of fumes when heated. Saw cut ends of our precut lengths are not galvanized and should be treated with a cold galvanizing compound to maintain protection once your project is complete. Any holes drilled or welded areas should also be treated. All dimensions are before the galvanizing process.
Specifications - ASTM A500B / A513, G90 Galvanized coating.
Surface Finish - silver / gray color, grainy and spackled surface
Mechanical Properties - Yield = 46,000, Tensile = 58,000

How to Measure - Height (A) X Width (B) X Wall Thickness(C) X Length



Outer Diameter
Square pipe: 20*20mm~400*400mm
Rectangular pipe: 20*40mm~300*500mm
Wall Thickness
Round pipe: 0.95~17.75mm
Square and rectangular pipe: 1.7~16mm
Length
3-12M according to client requirement
Material
Gr.A, Gr.B, Gr.C,
S235, S275, S355,
A36, SS400,
Q195, Q235, Q345
Finish of pipe
Hot dipped galvanized with zinc 220~260g/m2;
Pre-Galvanized with zinc 30~150g/m2
Painted with black/varnish lacquer;
Oil on the surface to prevent rust;
Bare pipe without painting:
Packing
OD not less than 273mm: Loose packing,piece by piece.
OD less than 273mm: In hexagonal seaworthy bundles packed by steel strips.
small sizes nested into big sizes.
Applications
Construction / building materials steel pipe
Steel structure
Scaffolding pipe
Fence post steel pipe
Fire protection steel pipe
Greenhouse steel pipe
Low pressure liquid, water, gas, oil, line pipe
Irrigation pipe
Handrail pipe

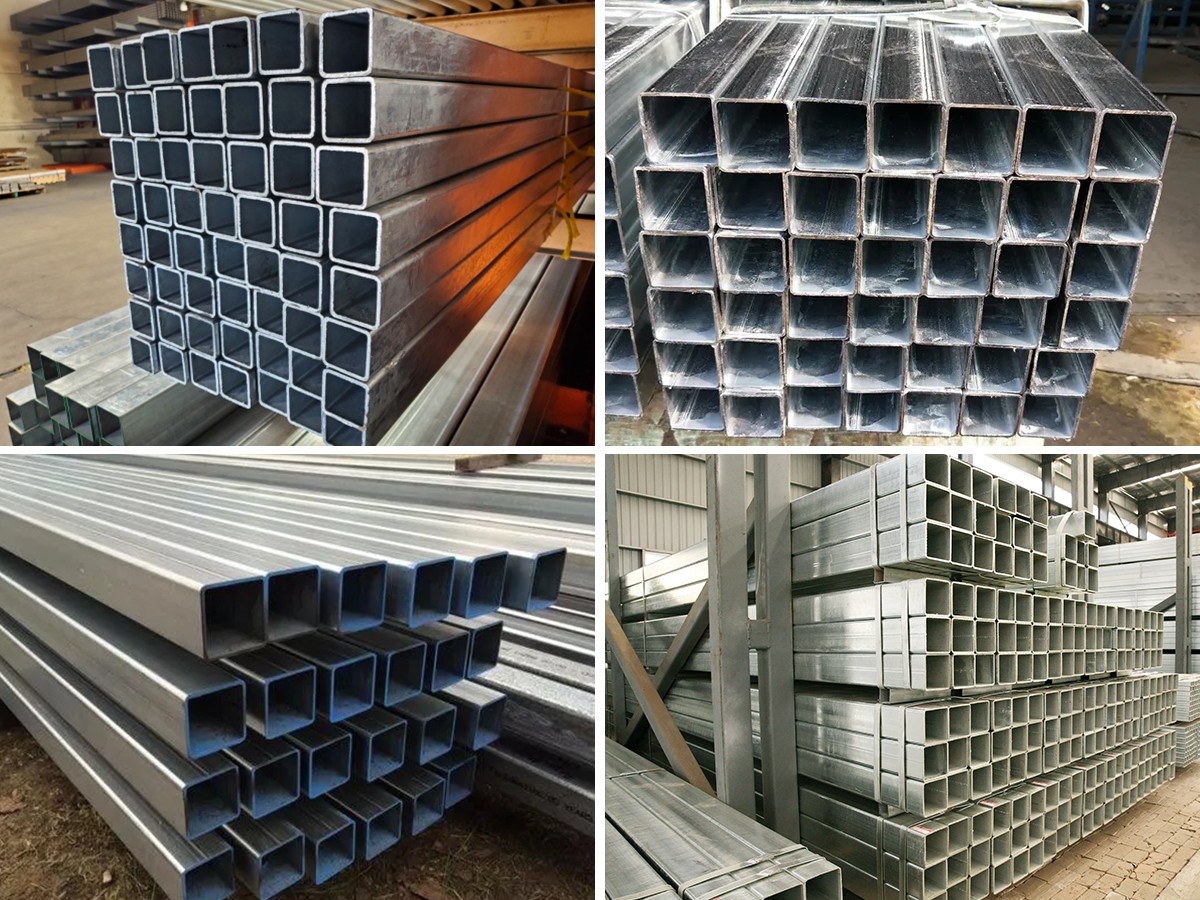

Product Picture


Galvanized Square Pipe

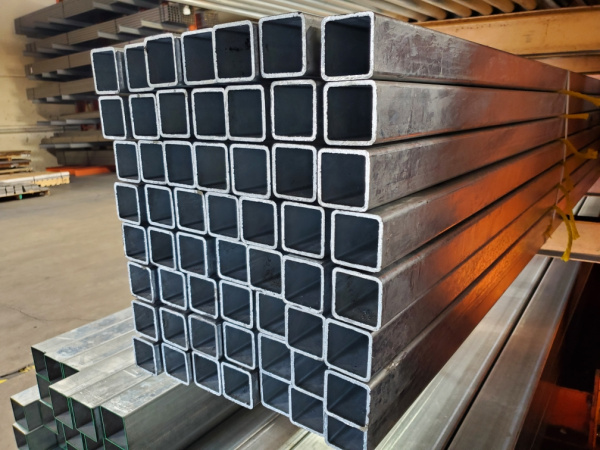

Product Application


Galvanized Square Pipe
