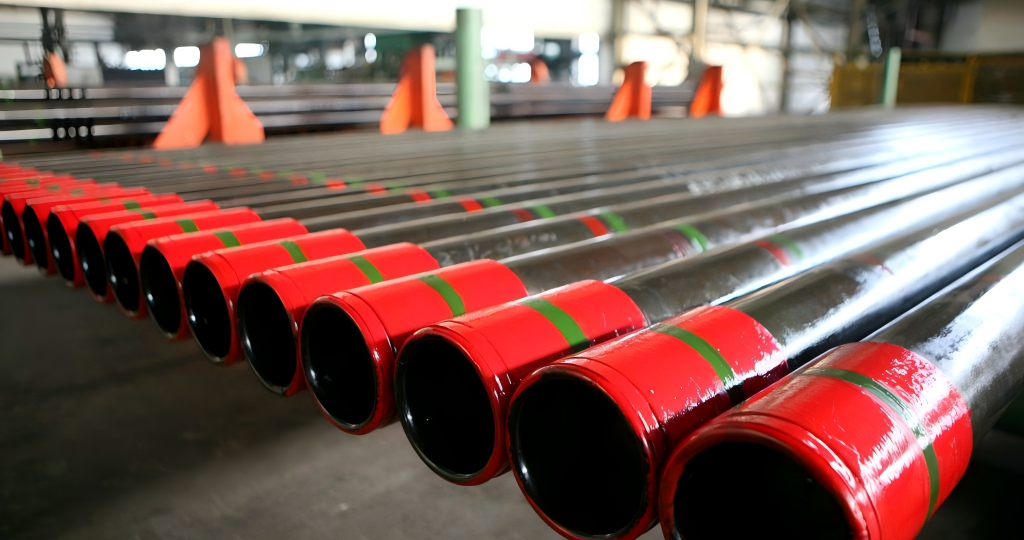

API 5CT Tubing PipeDimension:OD 48.26-114.3mm WT 3.18-16mm
Grade:JSS, N80-1,N80-Q, L80-1, L80-9Cr,L80-1,C90, T95, C95, P110 .
Thread types:NUE,EUE etc.
Standards and Technical Conditions for Supply:API Spec 5CT – Specification 5CT/ISO 11960, Specification for Casing and Tubing, Eighth Edition, Petroleum and natural gas industries-Steel pipes for use as casing or tubing for wells
Tubing are used as pipe to transport crude oil or natural gas from layer of the oil to surface, can hear better pressure during oil or gas production, and have smaller diameters.
API 5CT Casing PipeDimension:OD: 114.3-508mm WT: 5.21-16.13mm
Grade:Casing：J55, K55, N80-1,N80-Q, L80-1, L80-9Cr,L80-13Cr,C95, P110,Q125.
Thread types:STC,LTC,BTC etc
Standards and Technical Conditions for Supply:API Spec 5CT – Specification 5CT/ISO 11960, Specification for Casing and Tubing, Eighth Edition, Petroleum and natural gas industries-Steel pipes for use as casing or tubing for wells
Casings are used for fixing the well wall or down hole, which have wider diameters, can he divided into conductor casings, technical casings and Oil casings.

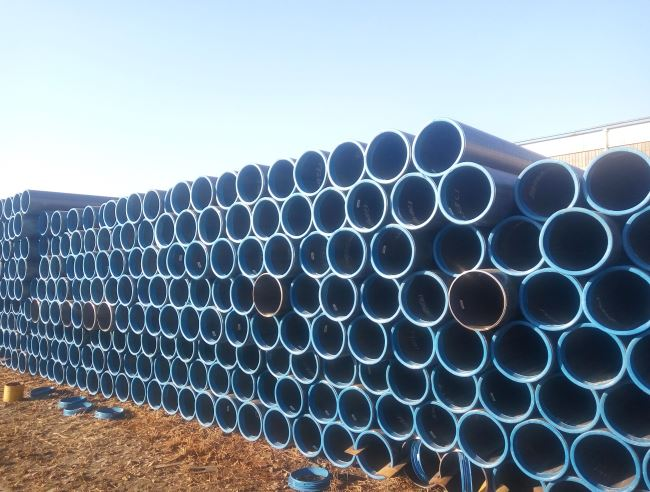

API 5L Line PipeProduct Dimension:SMLS:Φ10.3-720 × 1.7-52mm;WELD:Φ219-2134 × 5-52mm
Standard:API SPEC 5L, ISO 3183, EN10208
Uses:For conveying gas,water and oil either in the oil or natural gas industries
Grades: API 5L Grade B, X42, X52, X56, X60, X65, X70, X80
Product Specification Level: PSL1, PSL2, onshore and offshore sour services
Thickness Schedule: SCH 10. SCH 20, SCH 40, SCH STD, SCH 80, SCH XS, to SCH 160
Manufacturing Types: Seamless (Hot Rolled and Cold Rolled), Welded ERW (Electric resistance welded), SAW (Submerged Arc Welded) in LSAW, DSAW, SSAW, HSAW
Ends Type: Beveled ends, Plain ends
Length Range: SRL (Single Random Length), DRL (Double Random Length), 20 FT (6 meter), 40FT (12 meter)or customized
Surface Treatment: Natural, Varnished, Black painting, FBE, 3PE (3LPE), 3PP, CWC (Concrete Weight Coated) CRA Clad or Lined

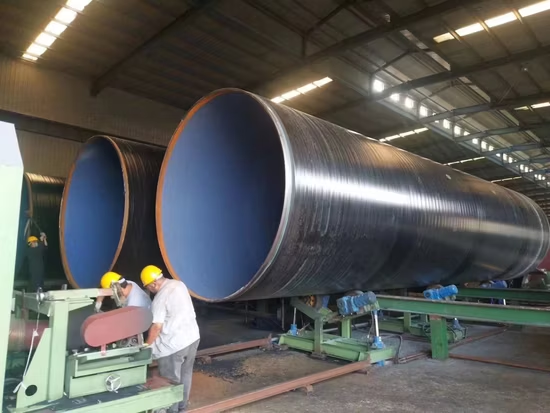

3PE Coated PipePipe diameter：Φ168-1422mm (6-56 inch)；Coating type：FBE, 2FBE, 2LPE, 3LPE/PP；
Standards:DIN30670,CAN /CSA-Z245.21-M92 etc
PP three-tier structure of anti-corrosion pipeline:
the first layer of epoxy powder (FBE50 – 100um),
the second adhesive (AD) 250 – 400um,
the third layer of polypropylene (PP) 1.4 – 4.0mm.
Coating temperature up to 110 degrees.
Application:Widely used in high surface temperature, according to the region longer underground water, gas, oil pipelines.

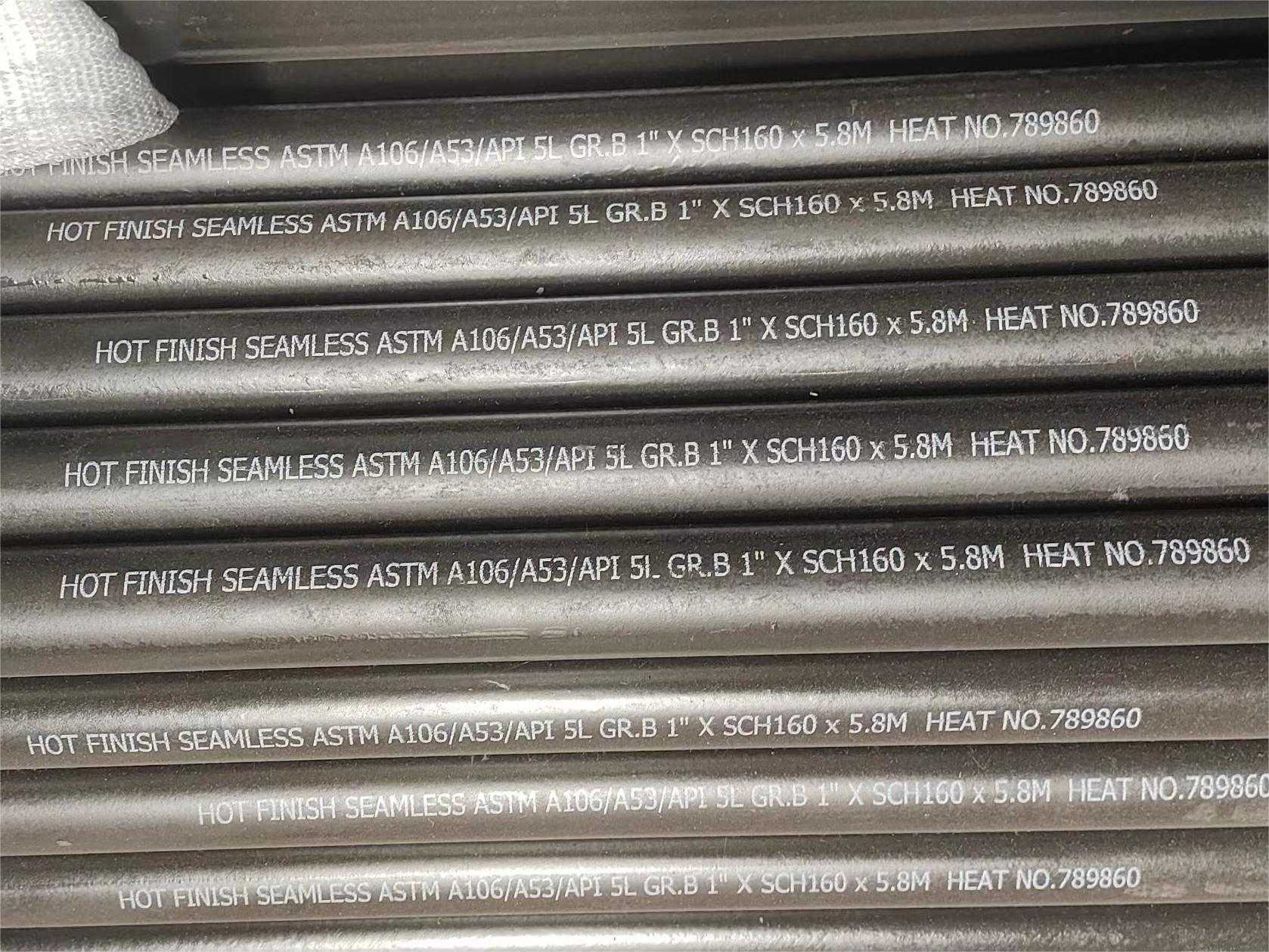

ASTM A106 PipeStandard: ASTM A106, Nace, Sour service.
Grade: A, B, C
Range of OD outer diameter: NPS 1/8 inch to NPS 20 inch, 10.13mm to 1219mm
Range of WT wall thickness: SCH 10, SCH 20, SCH STD, SCH 40, SCH 80, to SCH160, SCHXX; 1.24mm up to 1 inch, 25.4mm
Range of length: 20ft to 40ft, 5.8m to 13m, single random lengths of 16 to 22ft, 4.8 to 6.7m, double random length with average 35ft 10.7m
Ends procession: Plain end, beveled, threaded
Coating: Black paint, varnished, epoxy coating, polyethylene coating, FBE and 3PE, CRA Clad and Lined.

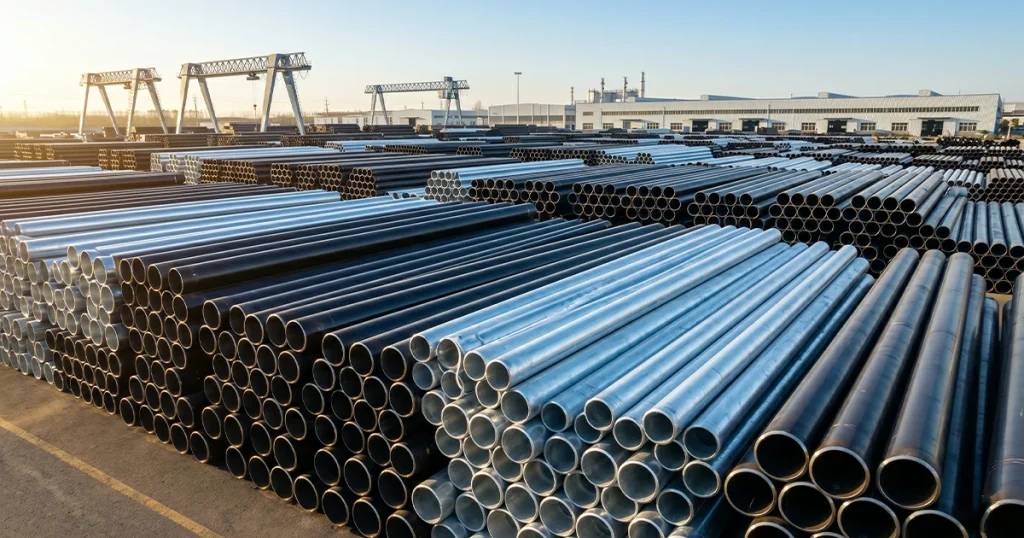

ASTM A53 PipeStandard and grades: ASTM A53 Grade A, B. Type E, F, S
Manufacturing types: Seamless, ERW, SAW
Pipe Dimensions Range: NPS 1/8” to 26”
Pipe Schedule Range: SCH 10, SCH 40, SCH STD, SCH 80, SCH XS to SCH 160 and SCH XXS
Ends Treatment: Plain, Beveled, threaded. With couplings.
Length range: Single Random Length (SGL), Double random Length (DRL )Fixed length 20 ft (6 m) and 40 ft (12 m)
Surface Coating: Epoxy coatings in 3PE or FBE, Black paint, varnished, anti-rust oil, galvanized

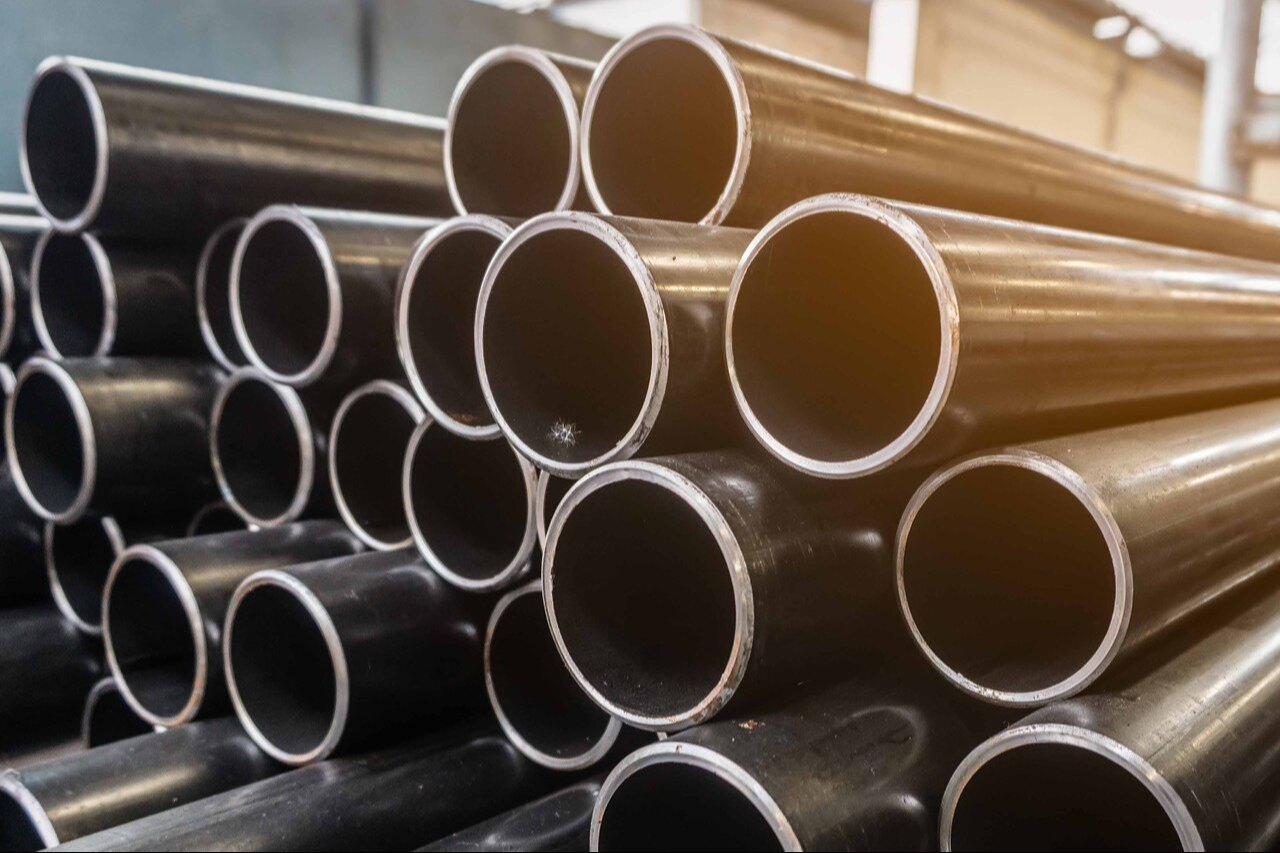

Carbon Steel Seamless PipeSizes:1/4" (8mm)-80" (2000mm);Thickness: 2.11mm-60mm
SCH: SCH10,SCH20,STD,SCH40,SCH60,XS,SCH80,SCH100,SCH120,SCH160,XXS
Coating:3PE Coating,3PP Coating,FBE Coating,Epoxy Coating,Special Painting
Length:3m-12m
Standards:API 5L, API 5CT, ASTM A53, ASTM A106, ASTM A179, ASTM A192, ASTM A252, ASTM A333, ASTM A335, ASTM A672

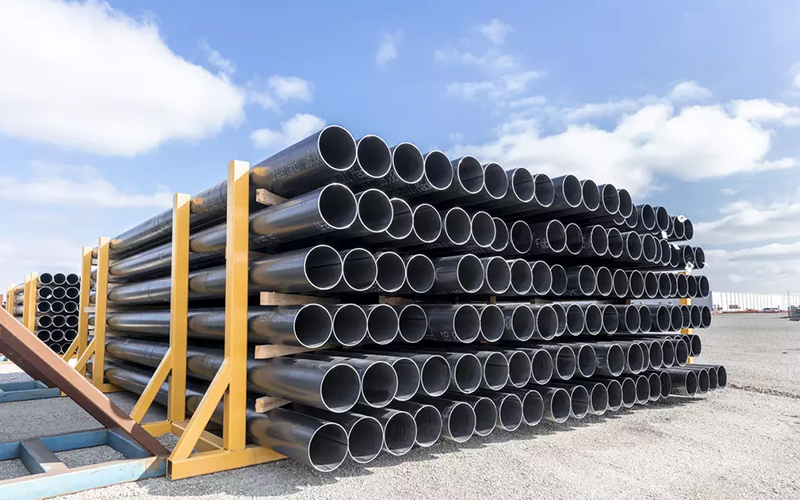

ERW Steel PipeStandards:ASTM 5L, ASTM A53, ASTM A178, ASTM A500/501, ASTM A252, EN 10219,JIS G3466
Grade:
API 5L: PSL1/PSL2 Gr.A, Gr.B, X42, X46, X52, X56, X60, X65, X70
ASTM A53: GR.A, GR.B,
EN: S275, S275JR, S355JRH, S355J2H
GB: Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360-L555
Note: Other grades of steel pipe can be made available through consultations.
Application:Used for Oil/Gas/Water transmission,Machinery Manufacturing etc

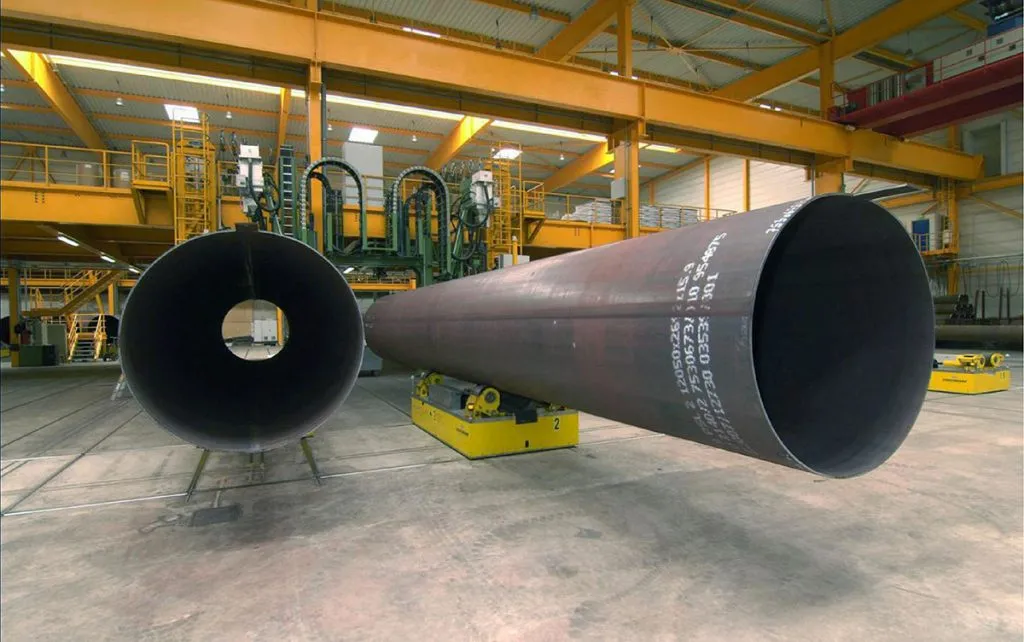

LSAW Welded PipeGrades: A/ B, X42-X80, L210-L255, PSL1&PSL2
Outside Diameter: Φ356mm-Φ1626mm (14"-64")
Wall thickness: 6.4mm-32mm
Length: 3.0m-12.5m
Standard: API 5L, GB/T9711, EN10208, IS03183 etc.

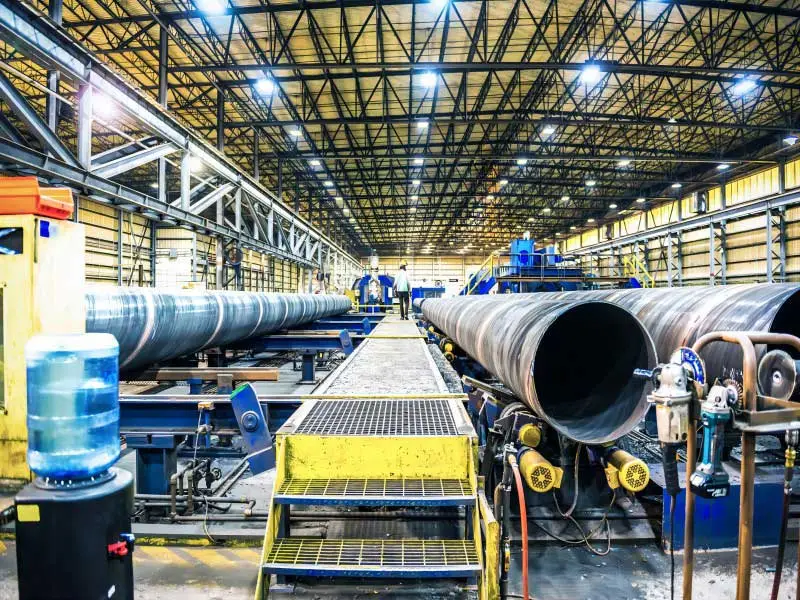

Uses:Line pipe can meet all requirements of high-pressure transmission pipeline for natural gas and petroleum and can be used in on-shore and off-shore oil and gas transmission- SSAW Steel PipeProduct Dimension：OD: 219mm-4064mm, WT: 4-25.4mm, LENGTH: 3-70m
Uses：SAWH pipe are mainly used in water supply engineering, petrochemical industry, chemical industry, electric power industry, agricultural irrigation and urban construction,and is one of 20 developing key products of our country.
Used for liquid delivery: such as water supply, drainage and oil
Used for gas delivery: such as gas, vapour, liquefied petroleum gas and natural gas
Used for structures: such as piling,bridge,wharf, road and tube for building structures,etc

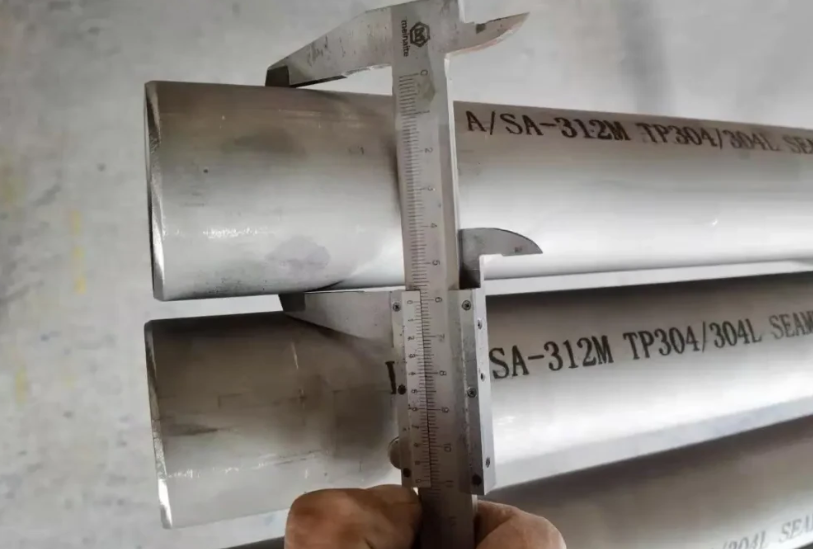

304 Stainless PipeSize range:
Seamless:Outer Diameter: Φ3-Φ600mm;Wall Thickness: 0.5-100mm; Length:24000mm
Welded:Outer Diameter: Φ6-Φ1219mm;Wall Thickness: 0.3-45mm ;Length: 18000mm (Maximum)
Standards:
ASTM:A312, A376,A358, A269,A249, A403, A182, A351
ASME: SA312, SA376

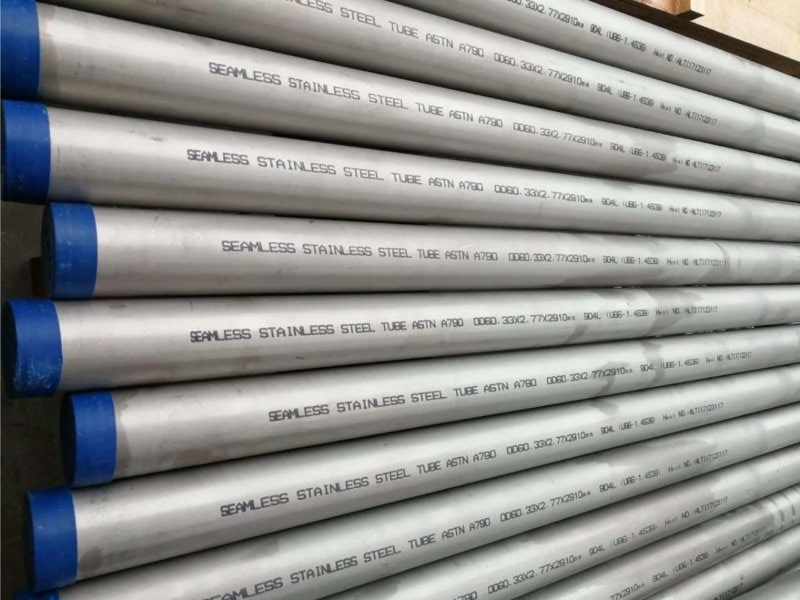

Pressure SA358,SA269, SA249,SA403, SA182, SA351- Stainless Seamless Steel PipeSize Range:OD: 6-762mm, Thickness: 0.5-50mm,
Max length: 18000mm
Schedules: 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH
Surface: BA, 2B, NO.1, NO.4, 4K, HL, 8K
Materials:
304 (0Cr18Ni9),304L (00Cr19Ni10),1Cr18Ni9Ti,321H (0Cr18Ni10Ti),310S (0Cr25Ni20),347H (0Cr19Ni11Nb),316 (0Cr17Ni12M02),316L (00Crl 7Ni14M02),316Ti (0Crl 7Ni12M02Ti),317 00Crl 9Ni13M03) ,S31803,S32205,S32750,S32760 etc

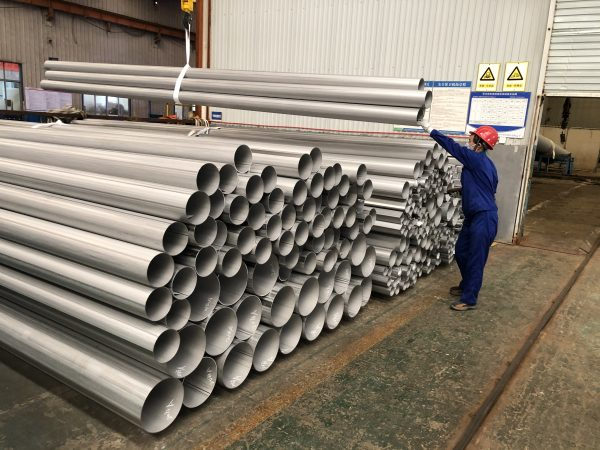

Stainless Welded Steel PipeSize Range:
OD: 6mm-2020mm,Thickness: 0.6mm-100mm,
Length:As customized requirement.
Material&Grades:
321, 304, 310S, 304L, 316, 316L, 316Ti, 317, 317L, 347H, 2205, S31803, S32205, S32750,S32760.
Standards:
GB21833/T14976, GB13296, JIS G4303, JIS G4311, ASTM A959, BS/EN 1.4301, BS/EN 1.4845, BS /EN 1.4306, BS/EN 1.4401, BS/EN 1.4571, ASTM A789/ A789 M, ASTM A928/ A928 M, ASTM A790/A790M, ASTM A249, JIS G17458, JIS3459, ASTM A269, ASTM 312, DIN 17455, ASTMA358, ASTM A450,ASTM A999
![Galvanized Steel Pipe]( "Galvanized Steel Pipe")
Galvanized Steel PipeSize:Outside diameter:
Round pipe: 17mm-273mm

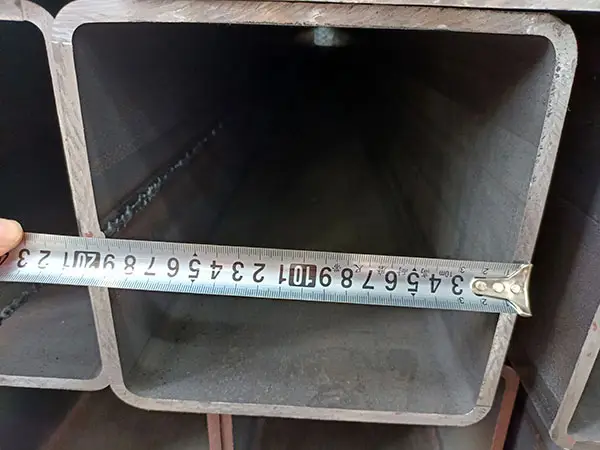

Square pipe:15mm x 15mm - 400mm x 400mm
Rectangular pipe: 10mm x 20mm -200mm x 400mm
Wall thickness:
Round pipe: 0.6mm-12mm
Square pipe:0.6mm-20mmRectangular pipe: 0.6mm-20mm
Length:2m-5.8m/6m/12m (We can adjust length according to
your request)
Standard
GB/T 3091 Q195/Q215/Q235/Q345, BS 1387,EN 39,EN 1139
S235JR/S275JR, ASTM A53 GR. A/B/C, JIS G3444 STK
400/STK500
Pipe type:Seamless & Welded Steel Pipe
(Round/Square/Rectangular)
End:Square Cut/Threaded, Burr Removed
Zinc Coating: 120~500 g/m2 (30um~70um)
Packing:Steel Strips bundled, Plastic Caps plugged,
Waterproof Paper wrapped etc.![Gas-specific hot-dip galvanized steel pipe]( "Gas-specific hot-dip galvanized steel pipe")

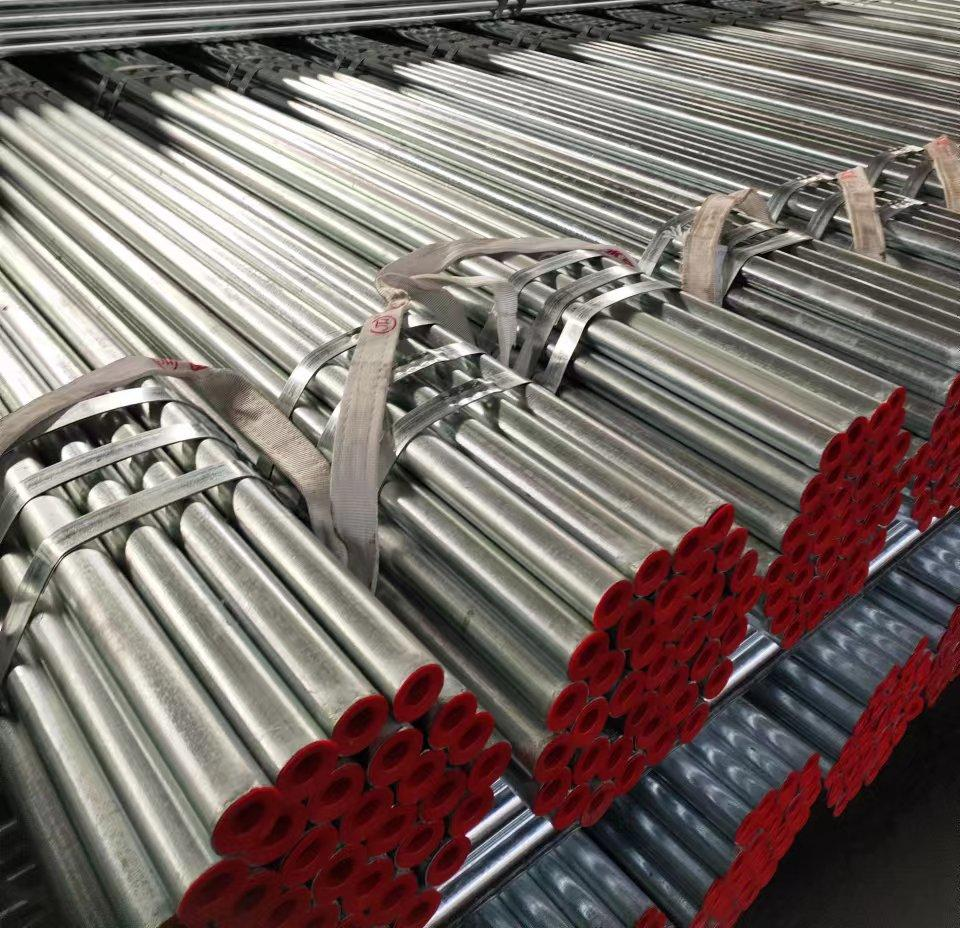

Gas-specific hot-dip galvanized steel pipeExecution Standard: GB/T3091-2025 Welded Steel Pipes for Low-Pressure Fluid Transportation
Application Scope: Mainly used for transporting flammable gases such as coal gas and natural gas, as well as other general pressure fluids.
Steel Grades: Q195, Q215, Q235, Q345, 10#, 20#, 35#![Galvanized steel fire sprinkler pipe]( "Galvanized steel fire sprinkler pipe")

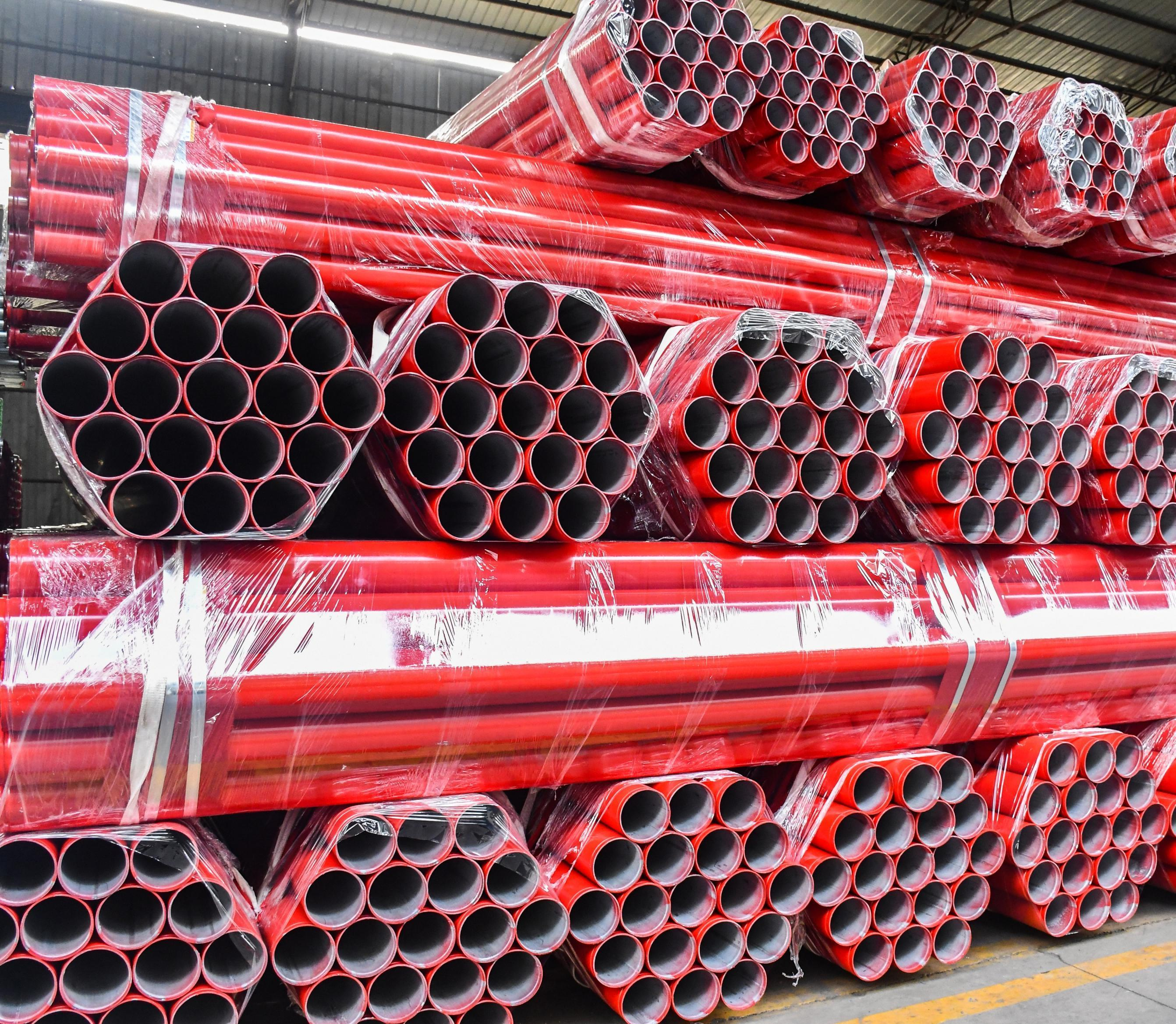

Galvanized steel fire sprinkler pipeGalvanized steel fire sprinkler pipes, often referred to as GI (Galvanized Iron) fire pipes, are carbon steel pipes coated with a zinc layer to enhance corrosion resistance, designed specifically for fire protection systems like wet, dry, preaction, and deluge sprinkler systems. ASTM A795, a key standard for these pipes, specifies both black and hot-dip galvanized welded (ERW) and seamless steel pipes for fire fighting applications, available in Grades A and B, with Grade B being more common due to its mandatory post-weld heat treatment (minimum 1000°F or 540°C). The galvanization process involves dipping the steel pipe in molten zinc, creating a protective coating of at least 1.5 oz/ft² (0.46 kg/m²), which shields the pipe from rust in moist environments, per ASTM A795 requirements.![Galvanized Square Pipe]( "Galvanized Square Pipe")

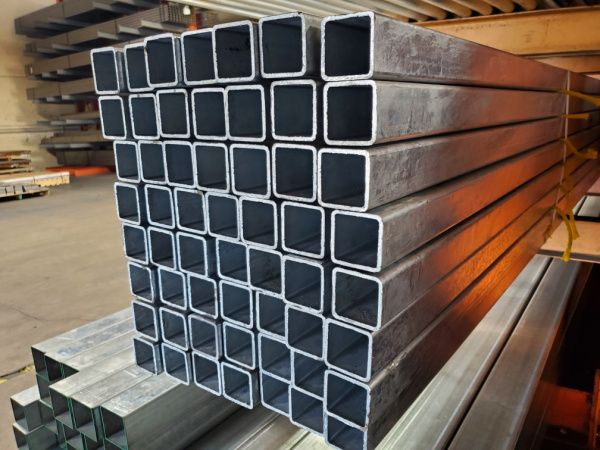

Galvanized Square PipeGalvanized square steel pipe is a welded steel pipe with a hot-dip galvanized or electro-galvanized layer on the surface. Galvanizing can increase the corrosion resistance of steel pipes and prolong the service life. Galvanized pipes are widely used. In addition to being used as pipeline pipes for general low-pressure fluids such as water, gas, and oil, they are also used as oil well pipes and oil pipes in the petroleum industry, especially in offshore oil fields, and oil heaters and condensers in chemical coking equipment. Pipes for coolers, coal distillation washing oil exchangers, and pipes for trestle piles and supporting frames of mine tunnels, etc.
ElbowType: Seamless / Welded
Size Range: 1/2” - 24” ( DN 21.3 - DN 610) for Seamless;
26” - 96” ( DN 660 - DN 2438.4) for Welded.
Wall Thickness: SCH 5S - XXS
Style: Long Radius (LR) / Short Radius (SR)
Angle: 45 Degree, 90 Degree, 180 Degree or in specified degree.
Standard: ASME/ANSI B16.9, ASME B16.28, MSS SP43, DIN2605,
DIN2617, DIN2516, JISB2311, etc.
Material: Carbon steel, Low Temperature Carbon Steel,
High Yield Carbon Steel, Alloy Steel, Stainless Steel.

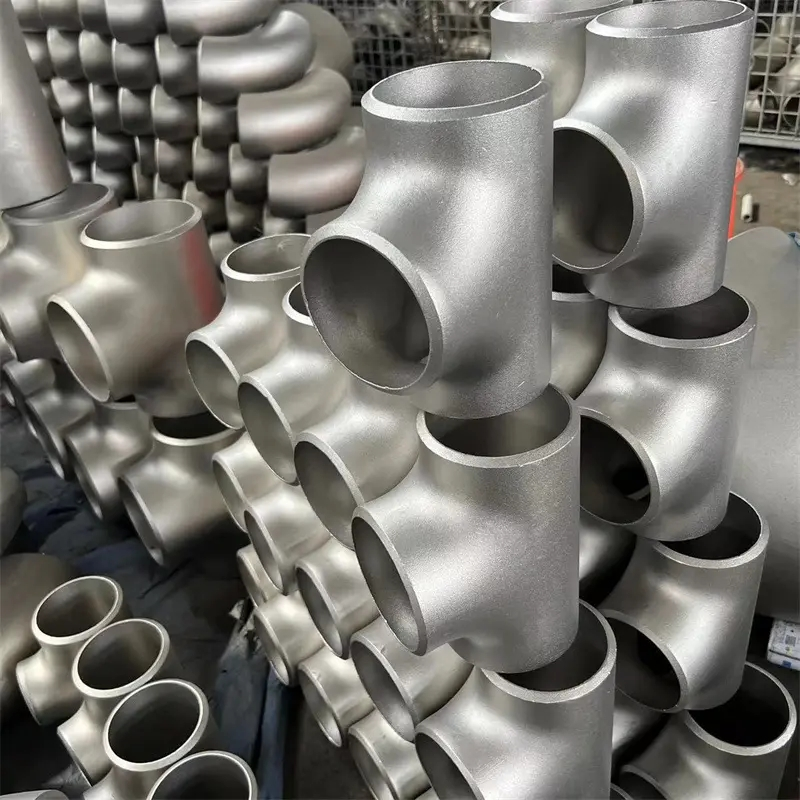

TeeType: Seamless / Welded
Size Range: 1/2” - 24” ( DN 21.3 - DN 610) for Seamless;
26” - 72” ( DN 660 - DN 1828.8) for Welded.
Wall Thickness: SCH 20 - XXS
Style: Equal / Reducing
Process: Cold-Extruded / Hot-Pressed.
Standard: ASME/ANSI B16.9, GB/T12459, GB/T13401, DIN 2615, SH3408,
SH3409-96, SH3410-96, HG/T21635, DL/T 695, SY/T 0510, etc.

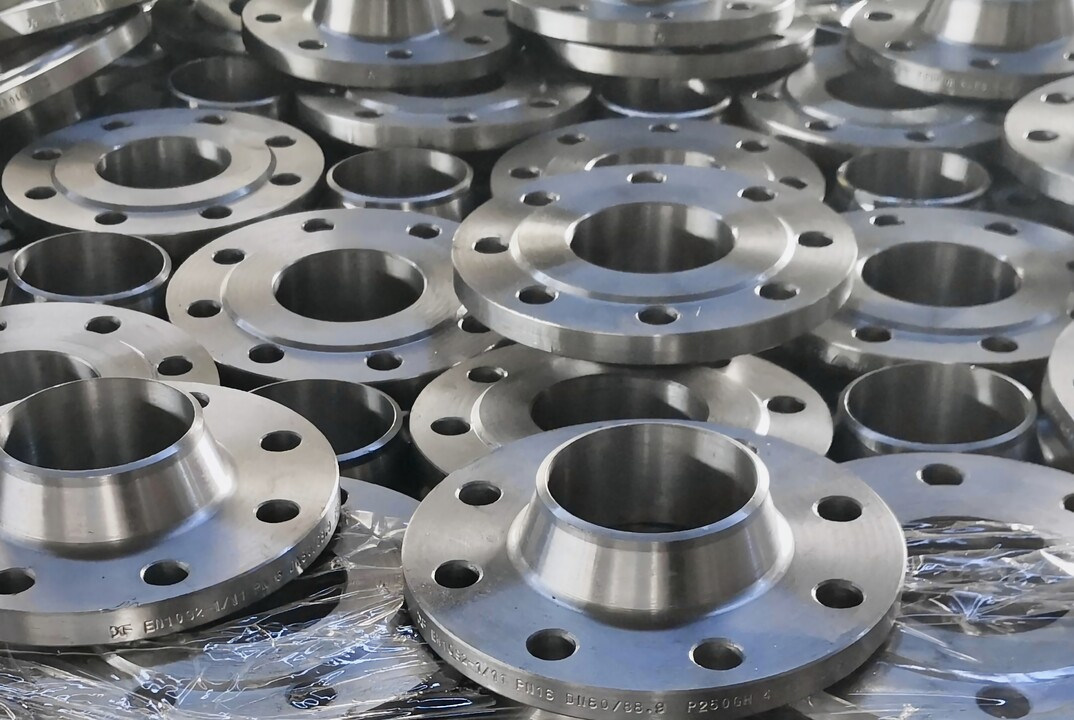

FlangeSize Range: 1/2” - 120” ( DN 15 - DN 3000)
Rating: 150, 300, 400, 600, 900, 1500, 2500;
Type: Welding Neck, Long Welding neck, Slip on, Blind, Spectacle Blind,
Lap joint, Socket weld, Threaded, Orifice, Ring Joint Flange
Spacer and Blank, Anchor Flange, API flange, etc.
Standard: ANSI B16.5, ANSI B16.47 Series A & Series B, AWWA C207, BS4504
BS3293, DIN EN1092-1, API590, JIS/KS, ISO 7005-1, JB/T, etc.

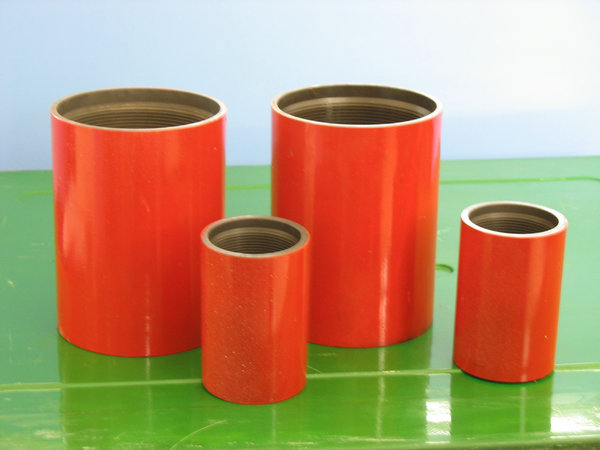

Material: Carbon steel, Low Temperature Carbon Steel, High Yield Carbon Steel- OCTG AccessoriesAPI Casing Coupling
Standard:API 5CT&5B
Size (Pipe OD) (in):4-1/2, 5, 5-1/2, 6-5/8, 7, 7-5/8, 8-5/8, 9-5/8, 10-3/4, 11-3/4, 13-3/8, 16, 18-5/8, 20
API Tubing Coupling
tandard:API 5CT&5B
Size (Pipe OD) (in):1.9''-4-1/2''
Casing Pup Joint
Size：4-1/2 ~ 20 in (114.3 ~ 508 mm) nominal size OD
Standard:API 5CT, API 5B
Tubing Pup Joint
Size:1.05 ~ 4-1/2 in (26.67 ~ 114.3 mm) nominal size OD
Standard:API 5CT, API 5B
